Aluminum CNC Machining

Aluminum is one of the most popular metals for CNC work because it is lightweight, strong for its weight, corrosion resistant, and relatively easy to machine. Choosing the right machine, process, alloy, tooling, and finish helps you get cleaner cuts, tighter tolerances, and fewer costly surprises. Whether you are comparing in-house equipment or evaluating cnc machining services, the best choice starts with how the part will be used.

What makes aluminum different in CNC machining?

Aluminum machines well, but it is not a “set it and forget it” material. Its softness compared with steels can be an advantage for fast material removal, yet that same quality can make chips stick to cutting edges and affect surface finish. Successful cnc aluminum machining depends on controlling heat, chip evacuation, tool geometry, and workholding from the start.

Aluminum’s natural oxide layer gives it useful corrosion resistance, while its high thermal and electrical conductivity makes it valuable for housings, heat sinks, brackets, enclosures, and transport components. It is also non-toxic and available in many alloys, so designers can balance strength, weight, weldability, corrosion resistance, and cost. The practical takeaway is simple: do not choose a machine only because it can cut aluminum. Choose a setup that matches the alloy, geometry, tolerance, and production volume.

The main CNC processes for aluminum parts

Different aluminum parts call for different machining methods. A flat plate with pockets, a cylindrical shaft, and a thin decorative panel may all be aluminum, but they do not belong on the same machine.

Common options include:

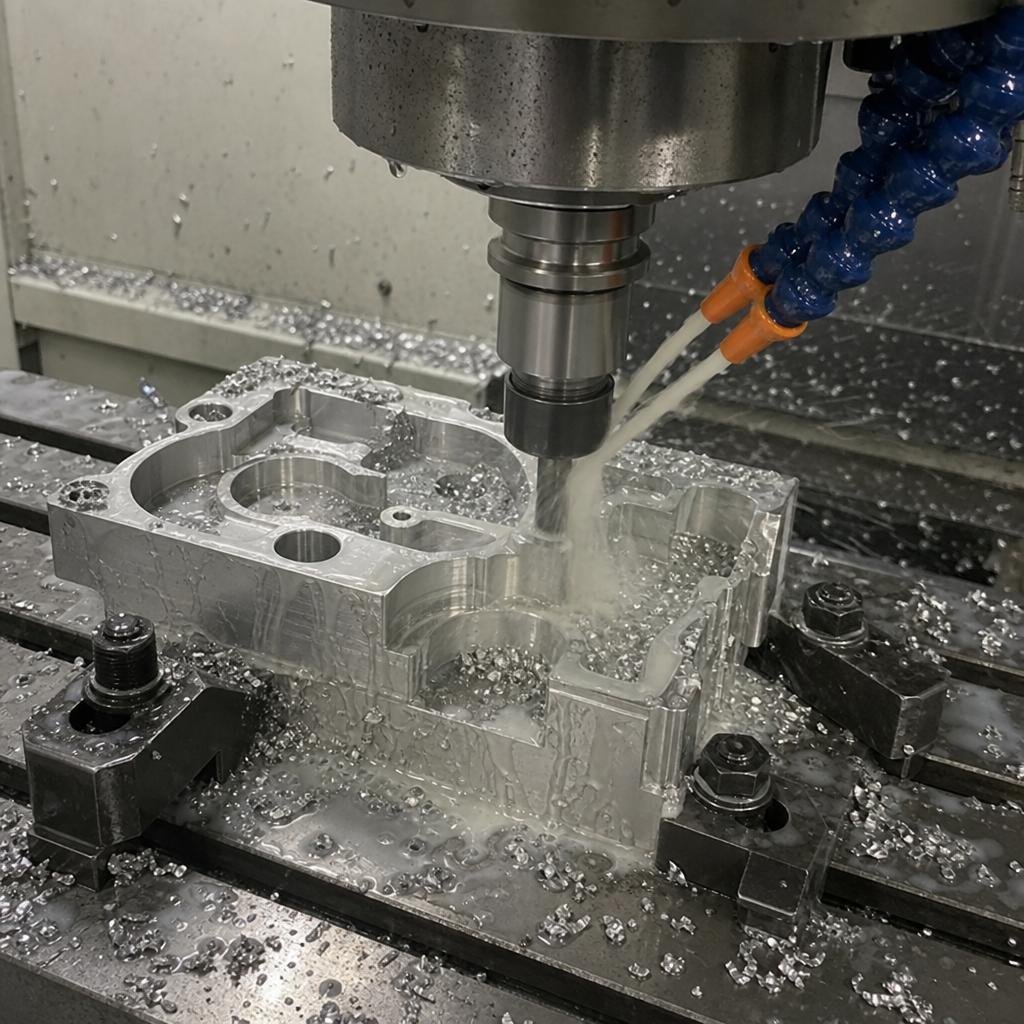

CNC milling: Best for prismatic parts, pockets, slots, holes, 3D contours, and complex faces. A 3-axis mill handles many basic parts, while 4-axis and 5-axis machines reduce setups for angled features and more complex geometry.

CNC turning: Ideal for round parts such as bushings, spacers, pins, nozzles, and threaded components. Live tooling on a turning center can add milled flats, cross-holes, and slots without moving the part to a mill.

Swiss machining: Useful for small, slender, high-precision aluminum components. It supports the workpiece close to the cutting tool, which helps reduce deflection on long or delicate turned parts.

Waterjet cutting: A cold cutting option for sheet, plate, and profiles where heat distortion is a concern. It is often useful before secondary machining.

Laser cutting: Effective for many sheet applications, especially where speed and clean profiles matter, though reflectivity and thickness must be considered.

EDM: Less common for general aluminum work, but valuable when very intricate details, sharp internal features, or difficult geometries are required.

For many projects, the right answer is a sequence rather than a single process. A plate might be waterjet cut near shape, then milled to final tolerance. A turned part might need secondary milling or finishing. Good aluminum cnc machining planning looks at the complete route from raw stock to finished part.

Matching the machine to the part

The right CNC machine is the one that can hold the part securely, reach all required features, maintain the needed tolerance, and remove material efficiently without damaging the workpiece. Machine rigidity matters, but aluminum also rewards high spindle speed, sharp tooling, and reliable chip clearing.

For prototypes, flexibility may matter more than cycle time. A 3-axis or 4-axis machining center can often make design changes quickly without expensive dedicated fixtures. For production, the better choice may be a palletized mill, multi-axis machine, turning center, or Swiss machine that reduces handling and keeps dimensions consistent across many parts.

Consider these decision factors before choosing equipment or a supplier:

Part shape: Block-like, flat, contoured, cylindrical, or long and slender parts each point toward different machines.

Feature access: If the part has angled holes, undercuts, or features on multiple sides, 4-axis or 5-axis machining may reduce setup error.

Tolerance and finish: Tight tolerances require stable machines, controlled temperature, good fixturing, and appropriate inspection.

Volume: One-off prototypes and high-volume runs have different priorities for setup time, automation, and tooling strategy.

Material behavior: Thin walls, deep pockets, and large flat surfaces can move during machining if stress, heat, or clamping pressure is not managed.

Post-processing: Anodizing, powder coating, or blasting may change dimensions or surface expectations, so plan finishes early.

Which aluminum alloy should you choose?

The best alloy depends on strength requirements, environment, finish, and manufacturability. 6061 is a common general-purpose choice because it offers a useful mix of machinability, corrosion resistance, availability, and finishing compatibility. Stronger alloys like 7075 or 2024 may be better for demanding structural applications, but they can require more care around corrosion behavior, forming, welding, or finishing.

Several alloys appear frequently in cnc aluminum machining:

6061: A versatile option for brackets, housings, plates, fixtures, and general mechanical parts.

7075: Known for high strength, often considered when lightweight structural performance is important.

2024: Strong and fatigue resistant, commonly associated with aerospace-style applications, but less corrosion resistant than some alternatives.

5083: Valued for corrosion resistance, especially in marine or harsh environments.

6082: A structural alloy used where strength, machinability, and corrosion resistance all matter.

Alloy choice also affects the machining strategy. Some alloys cut cleanly and finish beautifully, while others are more prone to built-up edge or may need adjusted feeds, speeds, coolant, or tool coatings. If the final part will be anodized, cosmetic expectations should be discussed early because different alloys can produce different visual results.

Tooling, coolant, and chip control make the difference

Aluminum often allows fast machining, but speed without control creates problems. Chips can weld to the tool, edges can smear instead of cut, and heat can distort thin sections. The goal is to use sharp tools, clear chips quickly, and keep cutting temperatures stable.

Carbide tools are widely used for aluminum, and diamond-coated or polished tools may help in demanding applications. Tool geometry should encourage chip evacuation rather than rubbing. Coatings such as TiCN may reduce wear and adhesion in some setups, but coating choice should match the alloy, coolant, and cutting conditions.

Practical best practices include:

Use sharp cutting edges designed for aluminum rather than general-purpose worn tools.

Apply coolant or mist consistently to manage heat and flush chips away from the cut.

Avoid overly light cuts that rub the surface and create poor finish.

Use climb milling where appropriate for cleaner cutting and better surface quality.

Support thin walls and delicate features with thoughtful fixturing or staged machining.

Leave finishing passes to remove stress-relieved movement and improve final dimensions.

These details are especially important when comparing cnc machining services. A capable shop will think beyond “can we cut it?” and consider how the part will behave during roughing, finishing, inspection, and coating.

Finishing completes the performance story

Machining creates the shape, but finishing often determines how the part performs and looks in the field. Aluminum can be left as-machined for functional components, but many parts need additional protection, texture, color, or wear resistance.

Common finishing options include:

Anodizing: Improves corrosion resistance and surface hardness while allowing color options on many alloys.

Powder coating: Adds a durable colored coating for parts that need protection and a uniform appearance.

Sandblasting or bead blasting: Creates a matte texture and can reduce visible machining marks before anodizing or coating.

Deburring and edge breaking: Removes sharp edges, improves handling, and helps parts assemble more smoothly.

Finishing should not be treated as an afterthought. Masked areas, threaded holes, tight fits, cosmetic faces, and coating buildup can all influence the machining plan. If a bore, slot, or mating surface must remain precise after finishing, that requirement should be built into the drawing and production process.
