Custom PA66+GF Automotive Bracket Injection Molding Guide

In modern vehicle manufacturing, a small bracket can carry a big responsibility. A PA66+GF bracket produced through custom automotive plastic injection molding can support routing, fastening, positioning, and protection needs while helping reduce weight and maintain repeatable part quality. For teams sourcing automotive parts, the goal is not simply to mold plastic, but to create a dependable component that fits the assembly, performs under stress, and supports efficient production.

What makes a PA66+GF bracket useful in automotive applications?

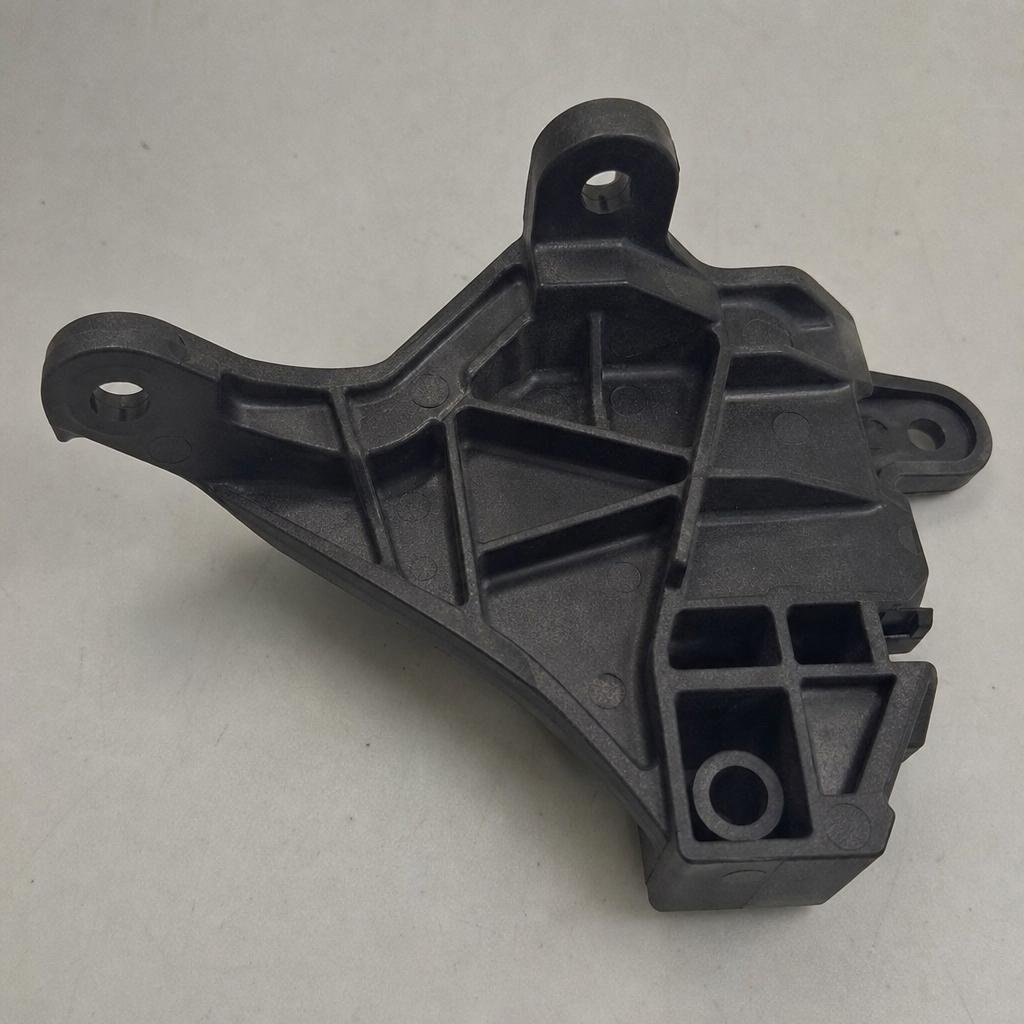

A PA66+GF bracket is useful because it combines the design flexibility of molded plastic with the added strength and stiffness of glass fiber reinforcement. PA66, a nylon material, is commonly chosen for technical components where durability, dimensional stability, and resistance to mechanical load matter. When glass fiber is added, the material becomes better suited for brackets that need to hold shape, support nearby parts, or withstand the demands of vehicle environments.

For automotive parts, brackets often need to do more than “hold something in place.” They may guide cables, secure sensors, support hoses, separate components, or provide mounting points in tight spaces. A molded PA66+GF bracket can be designed with ribs, clips, bosses, snap-fit features, and mounting holes directly in the part, reducing the need for secondary hardware or assembly steps.

Precision starts with application-driven design

Successful injection molding begins before the mold is built. The bracket design should reflect how the part will be used, where it will be installed, what loads it may experience, and how it will be assembled. A bracket that looks simple on a drawing may need careful attention to wall thickness, draft angles, gate placement, fiber orientation, and cooling behavior.

In custom automotive plastic injection molding, the best results usually come from early collaboration between product designers, mold engineers, and manufacturing teams. This helps identify risks before they become expensive tooling problems. For example, a thick section may appear strong, but it can also create sink marks, longer cooling times, or uneven shrinkage. A better approach may be to use ribs and structural geometry to improve strength while keeping the part moldable.

Key design factors include:

Wall thickness consistency: Helps reduce warpage, sink, and internal stress.

Draft angles: Allow the bracket to release cleanly from the mold.

Rib placement: Adds stiffness without unnecessary material buildup.

Boss and hole design: Supports fastening while reducing cracking risk.

Assembly features: Clips, slots, and locating points can make installation faster and more repeatable.

Tolerance planning: Critical dimensions should be clearly identified so the mold and process can be optimized around them.

Why choose injection molding for custom automotive parts?

Injection molding is often chosen for custom automotive parts because it supports repeatable production, complex geometry, and efficient scaling once the tool is complete. For a PA66+GF bracket, the process can produce detailed features in one molded component, which may simplify assembly and improve consistency across production batches.

The process is especially valuable when a part needs a defined shape, stable dimensions, and repeatable quality. Once the mold, material, and process parameters are validated, injection molding can deliver consistent parts with controlled cycle times. This makes it suitable for brackets and other components used across vehicle platforms, aftermarket assemblies, electrical systems, under-hood areas, and interior structures.

Injection molding also supports design integration. Instead of machining a bracket from multiple pieces or assembling several smaller components, engineers can often consolidate features into one molded part. That can reduce part count, improve fit, and make handling easier on the assembly line.

Material selection affects performance and manufacturability

PA66+GF is not selected only because it is strong. It is selected when the application benefits from a balance of rigidity, toughness, heat resistance, and moldability. The percentage and type of glass fiber reinforcement should match the bracket’s performance needs, because higher reinforcement can increase stiffness but may also affect flow, surface appearance, and tool wear.

Material decisions should consider:

Operating environment The bracket’s location matters. A part near heat, vibration, fluids, or mechanical load may need a different grade than a part used in a protected interior area.

Dimensional requirements Glass fiber reinforcement can improve stability, but fiber orientation during molding can influence shrinkage and warpage. Tool design and process control must account for this.

Assembly method If the bracket is screwed, clipped, welded, or snapped into place, the material must support that joining method without cracking, creep, or loosening under normal use.

Surface and appearance needs Some brackets are hidden, while others may be visible during service or installation. Texture, gate marks, and parting lines should be planned according to the expected appearance standard.

Production volume The material and mold design should support the expected production run, whether the project requires prototype validation, medium-volume supply, or long-term production.

Tooling quality shapes the final bracket

The mold is the foundation of precision. Even a well-designed bracket can fail to meet expectations if the tooling is not built for the material, geometry, and production requirements. For glass fiber reinforced PA66, the mold must handle abrasive material flow, consistent filling, effective venting, and reliable cooling.

A precision mold should support stable dimensions and clean part release. Gate location is especially important because it affects how material fills the cavity and how fibers align inside the part. Poor flow can create weak areas, cosmetic issues, weld lines in critical zones, or inconsistent shrinkage. Cooling channel design also matters because uneven cooling can lead to warpage, especially in brackets with ribs, bosses, or asymmetric shapes.

Before full production, sampling and validation help confirm whether the mold and process are ready. Trial parts can reveal issues with fit, strength, deformation, flash, short shots, or surface quality. Adjustments at this stage protect the project from recurring defects later.

A practical checklist before starting production

Before committing to production of a custom PA66+GF bracket, it helps to review both the design and manufacturing plan. A clear checklist can reduce delays and improve communication between engineering, purchasing, and production teams.

Use this checklist as a starting point:

Confirm the bracket’s installation location and surrounding components.

Identify all critical dimensions and tolerance requirements.

Review load, vibration, heat, and chemical exposure expectations.

Choose the PA66+GF grade based on real application demands.

Check wall thickness, ribs, bosses, holes, and snap features for moldability.

Plan gate location, parting line, ejector marks, and surface texture.

Define inspection requirements before the first sample run.

Test fitment with mating components, not just against the drawing.

Review packaging needs to prevent deformation or damage during shipping.

Document approved samples and process settings for future consistency.

This type of review is especially important for automotive parts because a bracket may interact with several systems at once. A small dimensional change can affect assembly speed, service access, or part clearance.

Quality control turns consistency into confidence

Precision injection molding depends on controlled inputs and repeatable checks. Material drying, melt temperature, mold temperature, injection speed, pressure, cooling time, and handling all influence the final bracket. When these variables are managed properly, the process becomes more stable and predictable.

Quality control should focus on the features that matter most to the application. For a PA66+GF bracket, that may include hole position, clip engagement, flatness, mounting surface accuracy, flash control, and overall fit. Visual inspection is useful, but dimensional checks and functional testing are often more important when the part has a mechanical role.

Good documentation also helps. Approved drawings, material specifications, inspection plans, and sample records create a shared reference for production. If a future adjustment is needed, the team can compare it against a known baseline instead of relying on guesswork.

From molded bracket to better assembly

A well-made custom bracket does more than meet a drawing. It can make assembly smoother, reduce handling complexity, and support long-term reliability in the vehicle. By using injection molding wisely, designers can combine multiple functions into one compact part, protect nearby components, and create a cleaner installation path.

For sourcing teams, the right partner should understand both plastic processing and automotive application needs. That means reviewing the part design, recommending manufacturable improvements, selecting suitable material, building reliable tooling, and controlling production quality from sample approval through repeat orders.

Final takeaway

A custom PA66+GF bracket is a practical example of how precision plastic engineering supports modern vehicle manufacturing. With the right material, mold design, process control, and inspection plan, custom automotive plastic injection molding can produce durable, consistent, and assembly-friendly automotive parts. The earlier design and manufacturing requirements are aligned, the easier it becomes to move from concept to dependable molded production.
